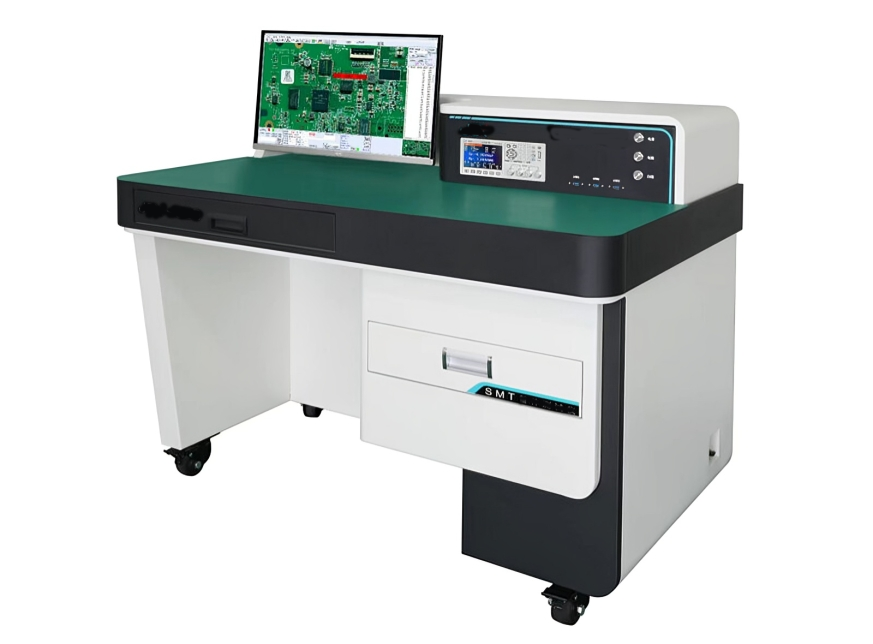

SMT First Article Tester

In Stock

Overview:

The SMT First Article Tester improves production efficiency and product quality while reducing labor costs through strict, standardized, and traceable processes. The system scans the first PCB for SMT assembly, with an intelligent frame capturing the PCB image and importing the BOM and component placement coordinates.

The software integrates the PCB image, BOM, and coordinates to perform global coordinate calibration, ensuring precise one-to-one alignment between BOM data and actual component positions.

During inspection, the LCR (Low-Rate Detector) automatically reads measurement data, identifies component locations, evaluates results, eliminates false positives and missed detections, and generates test reports that are automatically stored in the database.

Enquire Now

Guarantee Safe & Secure Checkout

Category: Electronic Manufacturing Equipment

Description

Description

Technical Parameters:

– Maximum scanning range: 320mm × 420mm
– Minimum detection element: 0201
– Maximum component height: 26mm
– Input voltage: AC200-230V 0.9kVA

Characteristics:

1. Intelligent matching of BOM, CAD and Image, one-click PCB scanning and image reading; User-friendly BOM and CAD editing with convenient coordinate matching.

2. Diverse retrieval and search functions, A user-friendly selection of the next detection element; Multiple personalized query functions; Quickly navigate to measure targets.

3. Intelligent assisted detection function, The smart frame acquires the PCB scanning area; The computer screen displays multiple windows, showing the information of the component under test in real time. Intelligent calibration of coordinate offset perfectly solves coordinate matching for PCBs without silkscreen printing. LCR automatic reading and automatic gear adjustment function.

4. Standardize production processes and improve the traceability of quality management. Features to prevent missed and false tests; Review function; Automatically judge measurement results to avoid human error; Complete test reports are stored in the database.
