PCBA Cleaning Machine | Off-Line Water Cleaning Machine Model 1
PCBA Cleaning Machine | Off-Line Water Cleaning Machine Model 1
Availability: In Stock
Overview

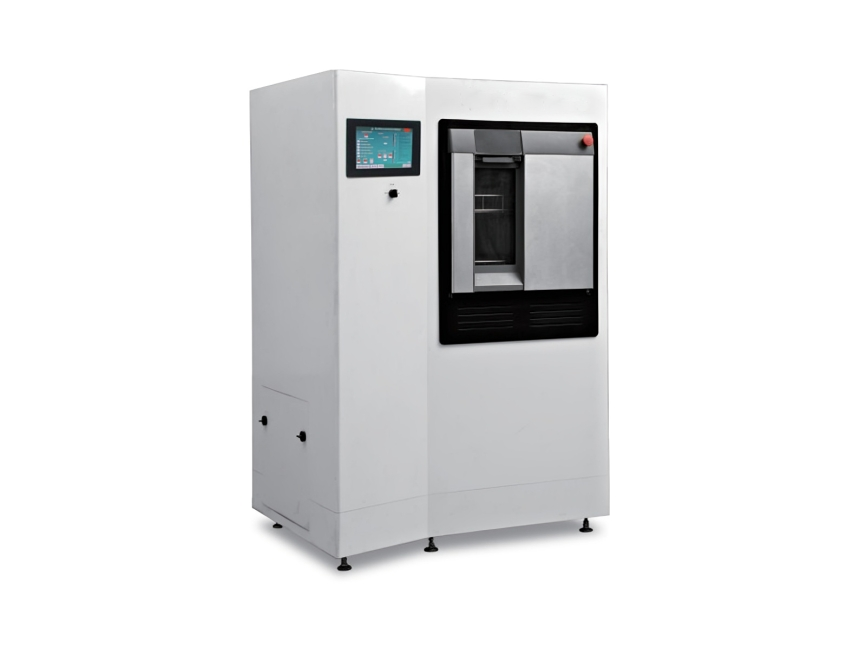

The industrial PCBA Cleaning Machine (Off-Line Water Cleaning Machine TDC-XL) is designed for precision cleaning of industrial components through a multi-stage solvent and water-based process. It combines cleaning, rinsing, and hot-air drying into a stable and efficient off-line cleaning system suitable for various industrial applications.
Features
PCBA flux-cleaning equipment designed for small to medium production capacities
Supports a standard batch-cleaning workflow
TDC-XL performs cleaning, rinsing, and drying within a single integrated chamber
Enhanced cleaning performance suitable for a wide range of PCBA types and requirements
High throughput capacity with a double-layer chamber design, accommodating larger product sizes and increased cleaning volume
Applications
Ideal for electronic manufacturing environments requiring reliable multi-stage cleaning of PCBA assemblies. Suitable for removing flux residues and contaminants across diverse board types in small to medium-scale production, supporting EMS and OEM operations that demand consistent cleanliness and high product quality.
Two-Layer Charging System: – Equipped with a dual-layer material rack allowing layered loading, featuring a push-pull feed rack and snap-on doors/windows for fast and convenient switching.
Solvent Cleaning Process: – Rehydration: DI water and a proportionate chemical cleaning agent are pumped into the tank. – Drain: Used cleaning solution is discharged. – Operation: The mixed DI water and solvent circulate through the cleaning tank once the target temperature is reached.
Solvent Rinse Process: – Rehydration: Water is pumped from an external tank. – Operation: After reaching the set temperature, the water is pumped into the cleaning pipe for rinsing. – Drainage: Fluid is discharged via an auxiliary pump.
Water Rinsing Process: – Rehydration: Water is pumped from an external tank. – Operation: Heated water circulates through the cleaning pipe for rinsing. – Drainage: Discharged through an auxiliary pump.
Drying Process: – Operation: Filtered dry air is forced into the chamber to air-dry the product. – Standard drying temperature is approximately 73°C.
System Advantages: – Rugged, durable construction with a Windows-based operation platform. – Layer-fill capability with dual material brackets. – Rapid changeover with push-pull frames and clip-on door/window design. – All process parameters can be customized to meet diverse product and process requirements.
