Description
Technical Parameters

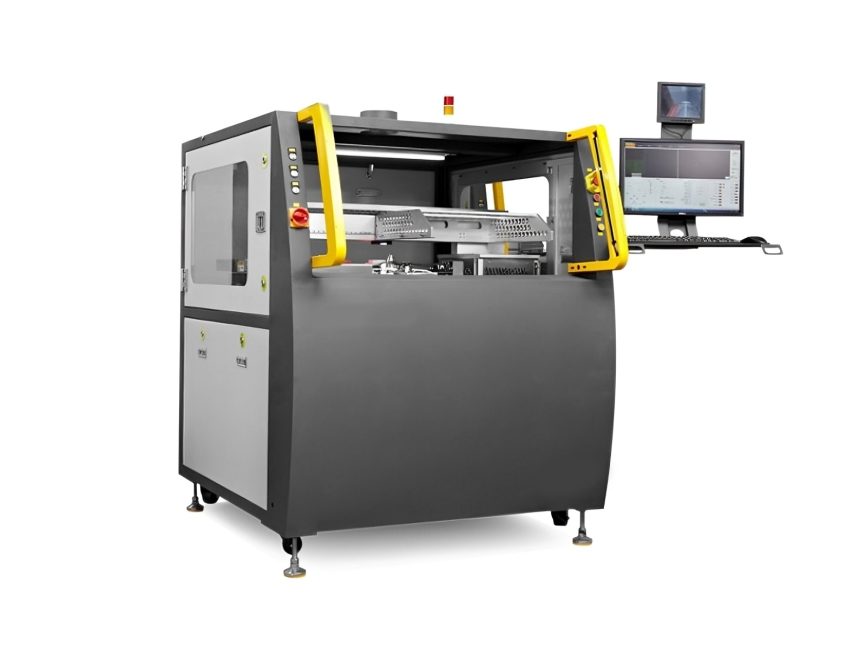

– The machine has dimensions of L1280 mm × W1400 mm × H1650 mm and operates on a single-phase 220 V, 50 Hz power supply.
– It supports a rail adjustment range of 50–300 mm and PCB sizes up to L450 mm × W300 mm, with a transport height of 900 ± 30 mm.
– The platform uses a pulley and slide-rail structure, providing movement accuracy of ±0.25 mm.
– The tin furnace system features a single cylinder with a 13 kg capacity, driven by a mechanical pump.
– Nitrogen consumption is approximately 1.5–2 m³/h per tin cylinder.
– The system supports both online and offline programming and is compatible with picture and Gerber file inputs.
